Siemens 5WY14 PCB Components
From OpenGK
Front Side
Click for the high resolution, no labels picture
1. Infineon C167CR-LM CPU
16-Bit Single-Chip Microcontroller C166 Family (Non-ROM)
Package: P-MQFP-144-8
Datasheet: [89 pages] Infineon C167CR datasheet v3.3 February 2005.pdf
User manual: [464 pages] Infineon C167CR user manual v3.1 March 2000.pdf
2. AMD AM29F400BB 4 Megabits Flash memory
4 Megabit CMOS 5.0 Volt-only Boot Sector Flash Memory
Package: SO44
Datasheet: [44 pages] AM29F400B datasheet November 2009.pdf
3. Generic 8MHz Crystal
4. Motorola TY94086DH driver (Low-Side Switch?)
5. Motorola TY94086DH driver (Low-Side Switch?)
6. Motorola ???
7. Mosfet ???
8. Mosfet ???
9. Amis ATM46C3
10. Amis ATM40 R7007 - rebranded Renesas' HIP9011? - knock signal processor
Dual Sensor Engine Knock Signal Processor
Package: SOIC20
Datasheet: [11 pages] Renesas HIP9011 engine knock signal processor datasheet, January 2006
Application note: [15 pages] Renesas HIP9011 engine knock signal processor - Application Note, November 2006
11. Infineon A2C20219 - Triple Voltage Regulator
12. ST ATM39B-556757 - 30A fuse?
13. unreadable
14. ZMD U62H64SA - automotive RAM

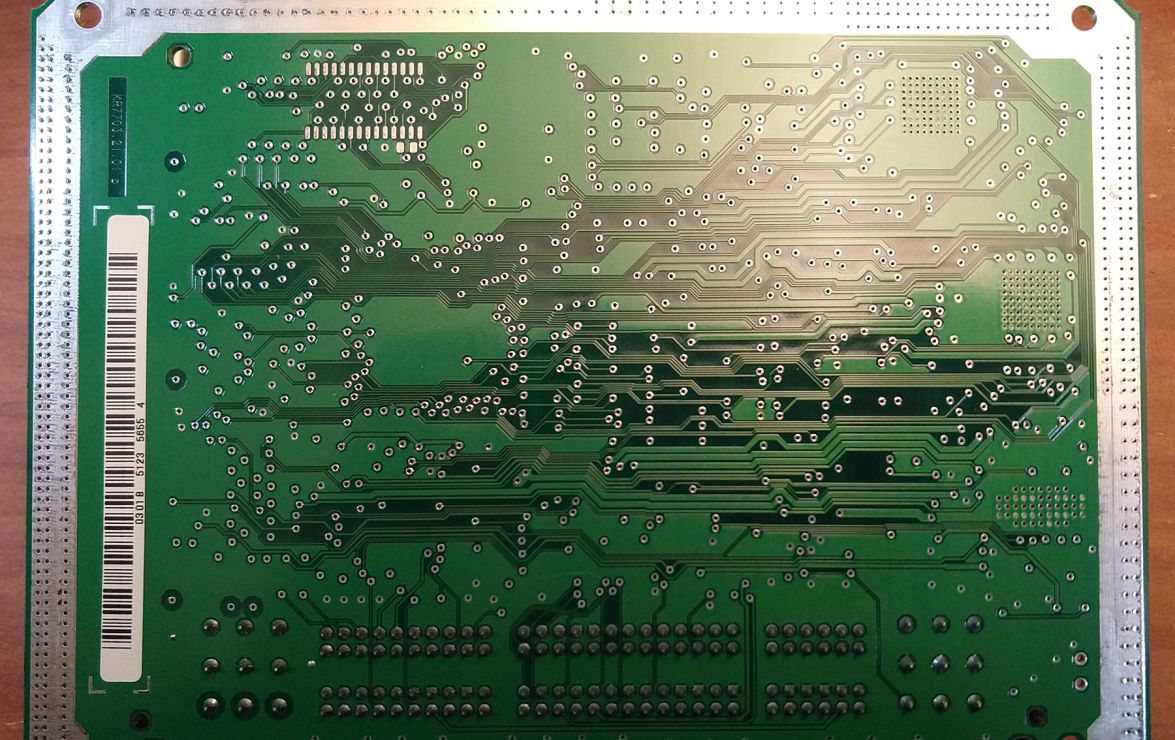

Back Side
