BCM 95410-2C160
From OpenGK
Origin
This BCM was installed in a EU '02 2.0 with VIN KMHHN61DP2U038775

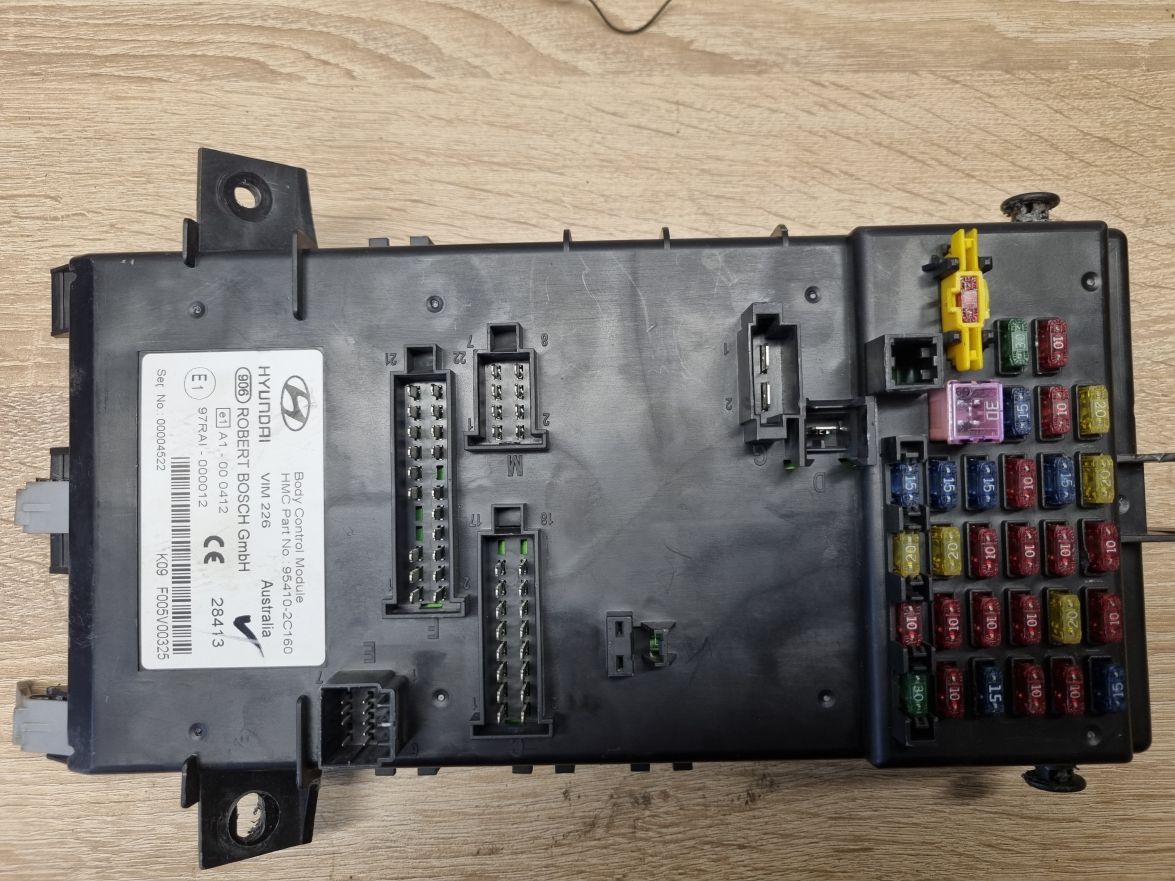

Module front
Click on the image to open it in full resolution - these files often have 15mb+

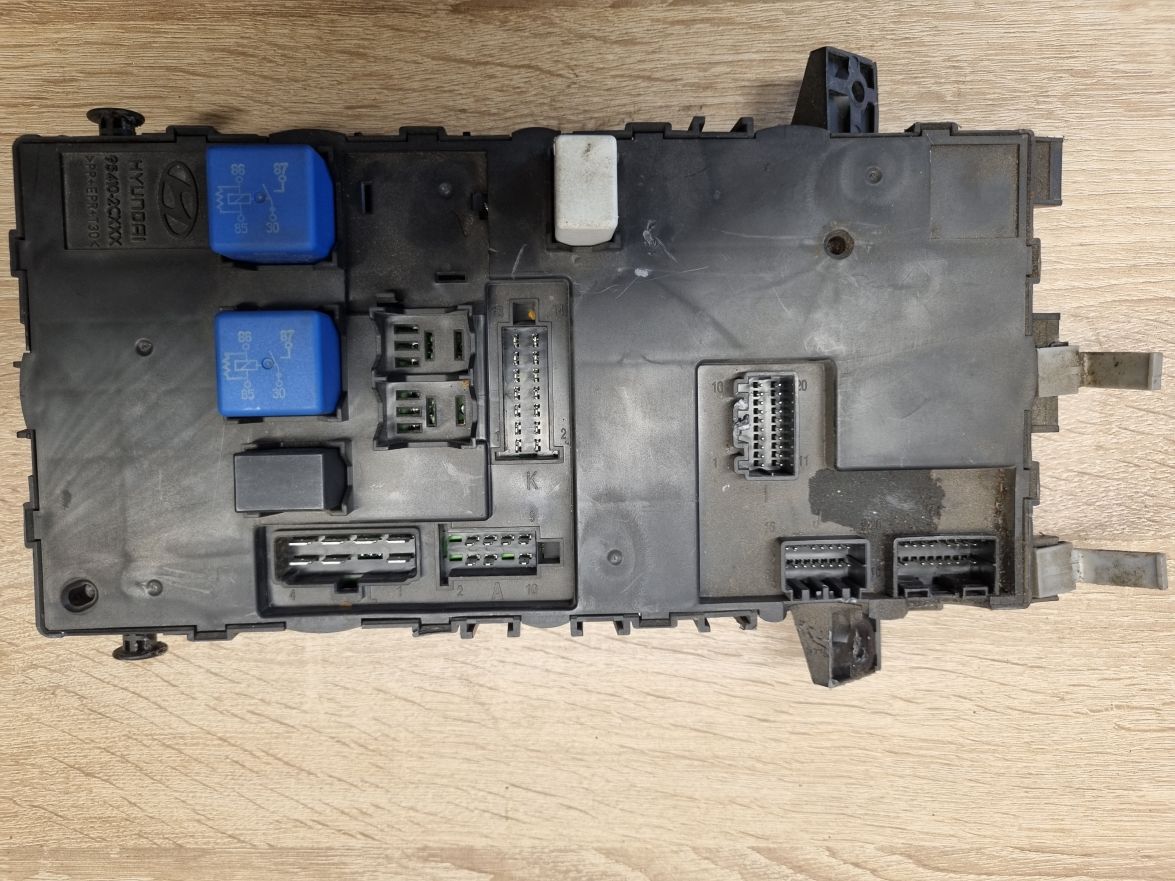

Module back
Click on the image to open it in full resolution - these files often have 15mb+

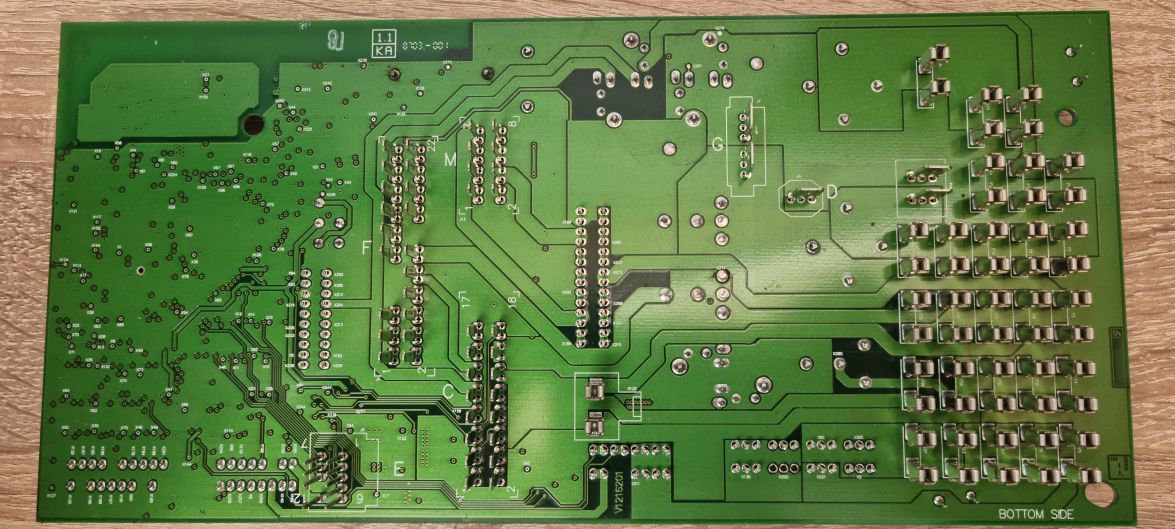

PCB front
Click on the image to open it in full resolution - these files often have 15mb+
.jpg)
PCB back
Click on the image to open it in full resolution - these files often have 15mb+
.jpg)

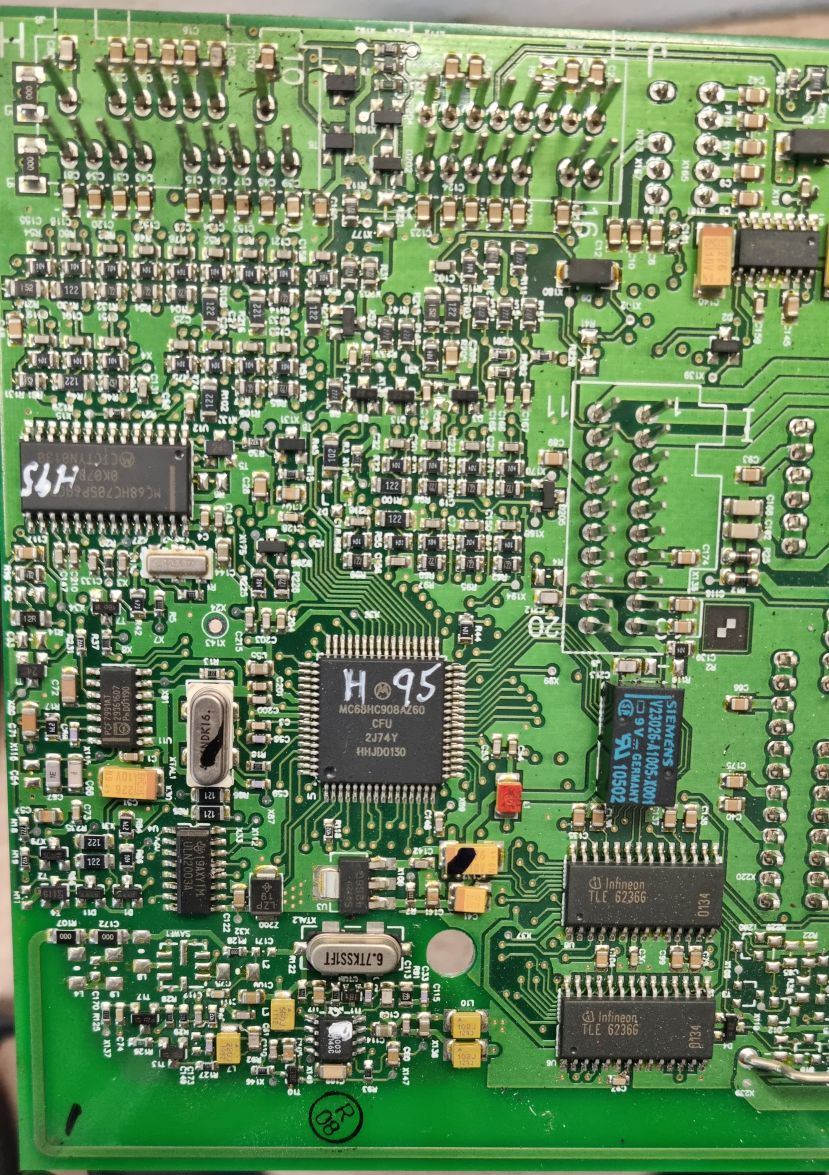

Close up on the microcontroller section
Click on the image to open it in full resolution - these files often have 15mb+
.jpg)
